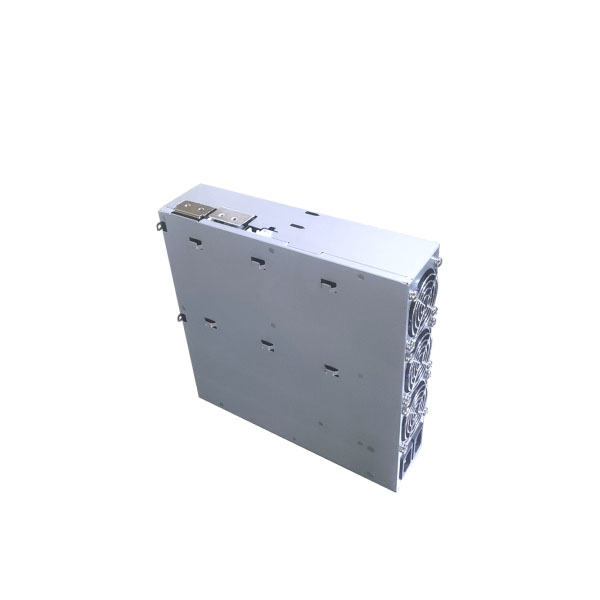

APW121417b_14V-17V_V1.00 EMC
Original price was: $229.00.$149.00Current price is: $149.00.
For S19（Metal Core PCB), KA3,L7,K7,DR7,HS3
* The actual quotation price may vary according to the market. Display price for reference only.
- Satisfaction Guaranteed
- Excellent quality
- Secure Payments
Description
| Out1 | |
| DC Voltage | 17V-21.6V |
| Rated Current(380V input) | 300A |
| Rated Power(380Vinput) | 6500W |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <5S |
| Short Circuit Protection | >10mS |
| Out1 | |
| DC Voltage | 14V-17V |
| Rated Current(220V input) | 182A |
| Ripple & Noise | <1% |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Out2 | |
| DC Voltage | 12.3V |
| Rated Current(220 V input) | 18A |
| Ripple & Noise | <1% |
| Voltage Accuracy | 12.2V—12.4V |
| Line Regulation | <1% |
| Load Regulation | <1% |
| Setup Time | <2S |
| Short Circuit Protection | >10mS |
| Input | |
| Voltage Range | 200-240V AC |
| Frequency Range | 47-63Hz |
| Power Factor | >0.99(full load) |
| Leakage Current | <1.5mA（220V 50Hz） |
| Protection | |
| Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes |
| Overheat Protection | Yes |
| Over-current Output | 260A-340A （protection value varies under different voltage） |
| Environment | |
| Operating Temperature | -20-45℃ |
| Operating Humidity | 20%-90%RH（non–condensing） |
| Altitude | < 2000m |
| Structure | |
| Dimensions | 254.6mm*251.6mm*63mm |
| Net Weight | 3.6kg |
| Cooling System | Forced‐air cooling |
| Noise | 45dBA |
NOTES
- One account can purchase a maximum of 500 units.
- The shipping costs, cutsoms charges, and taxes(if any) are not included in the retail price shown above.
- After an order has been submitted, a request to cancel the order, refund any part of the ordered amount or change the ordered item(s) to different item(s) or different batch(es) will not be entertained by CryptohashMiners.
- The pictures shown are for reference only; the final shipment version shall prevail.
SHIPPING DETAILS
- The products are made in China. If shipping to the U.S., customers will need to pay an extra 25% tariff.
- Shipments will be scheduled on a first-paid-first-ship basis for orders on which CryptohashMiners has received full payment.
- You are responsible for any customs delays or returned shipments due to a lack of proper documentation. It’s highly recommended to be aware of local customs clearance policies and to prepare all customs documentation ahead of time to avoid any customs clearance delays or unexpected costs.
| Weight | 3.6 kg |
|---|---|
| Dimensions | 25.46 × 25.16 × 6.3 cm |
